Description

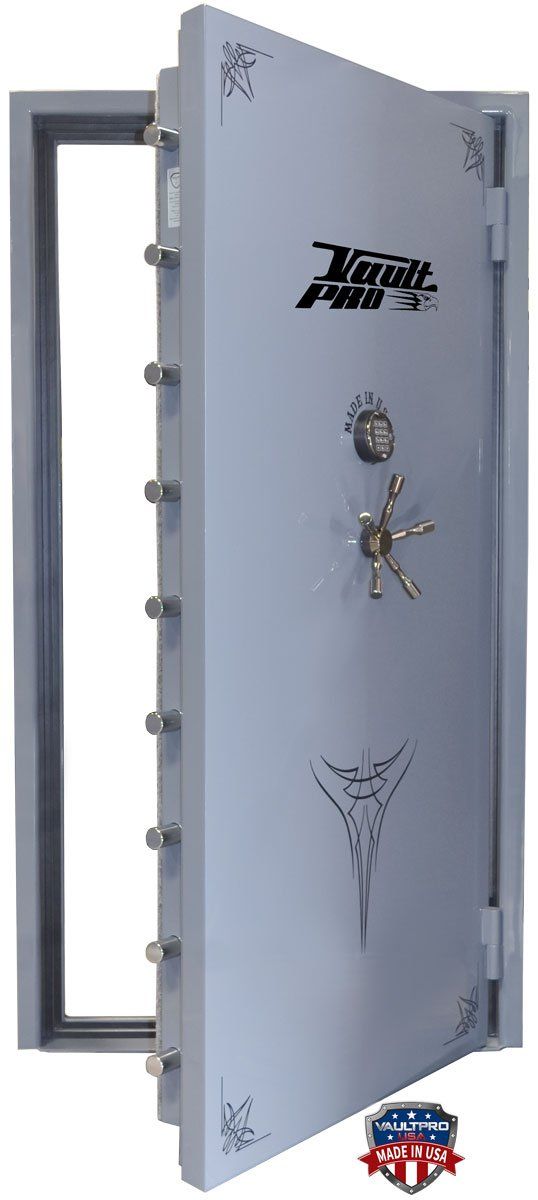

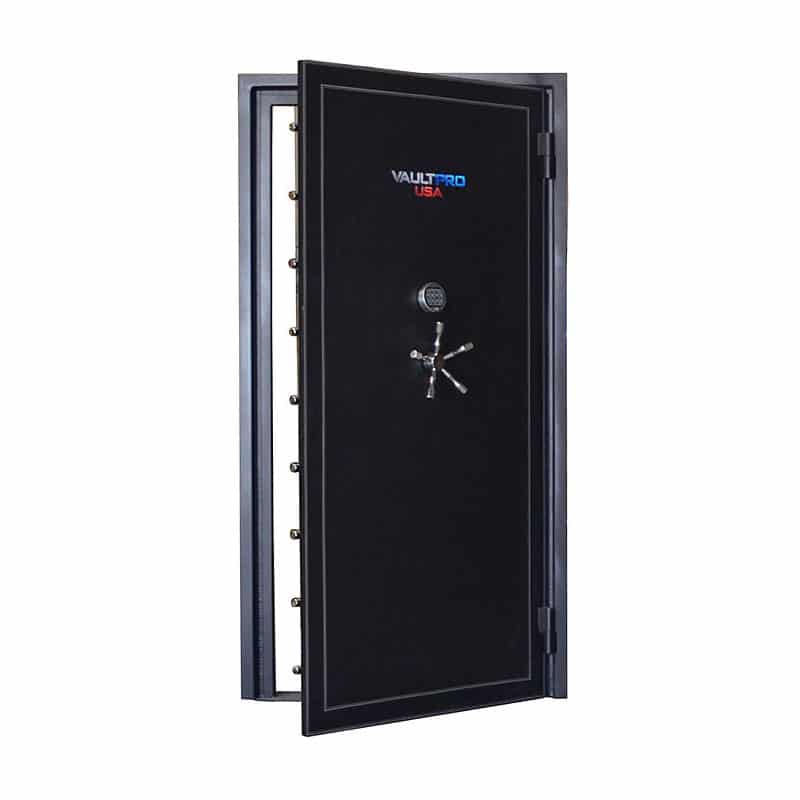

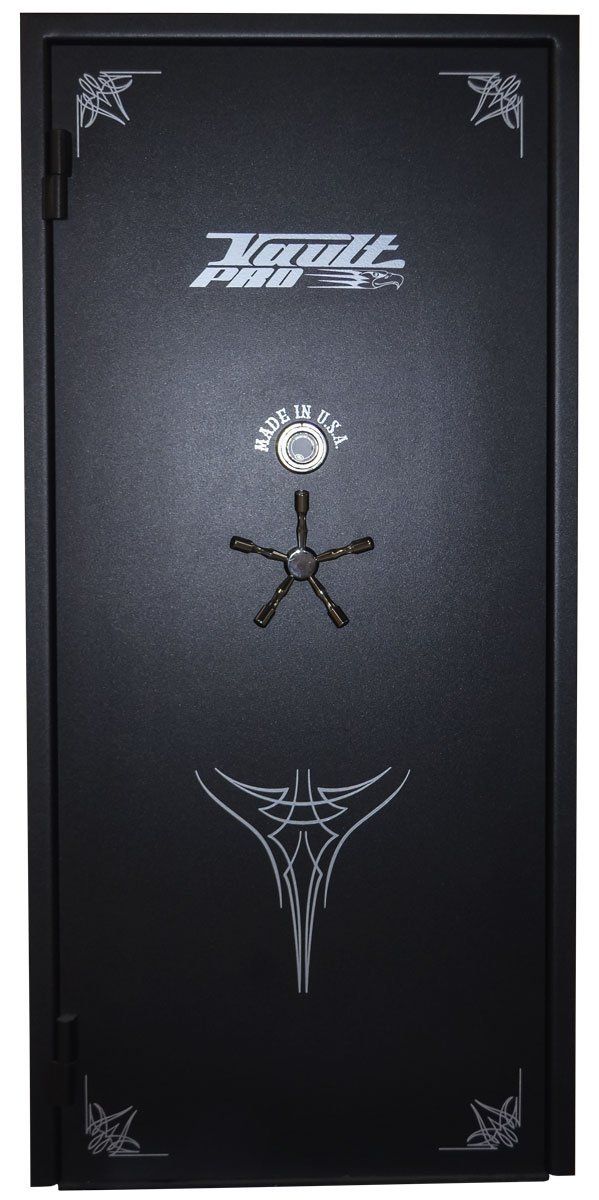

Atlas Series Heavy Duty Vault Doors

4-Way 22-Bolt Locking System Vault Doors

Atlas Vault Doors are equipped with a comprehensive range of security and safety features that most other vault door manufacturers aspire to achieve. Each Atlas door boasts a robust ½” solid steel front plate within the 2” step system, meticulously hand-fitted to a sturdy ¼” solid steel frame. The door incorporates a 4-Way – 22 bolt locking system along with an internal release mechanism. A ¾” thick, 60+ Rockwell Hard plate safeguards your S&G Spy-Proof Lock complete with a Locking Dial, protecting it from drilling attacks. Additionally, a 3 + 1 Titan Multi Re-locker system provides enhanced defense against punch attacks. The 2300° Ceramic Fire Blanket ensures more than 2 hours of fire protection. Choose from our range of popular standard colors or design your own custom door with gloss paint.

Atlas Series Standard Features

• 1/2″ Solid Steel Front Plate
• 2″ Step-System Door – Overall Door Thickness 6¼”
• 2 Hour Fire Door – 2300° Ceramic Fire Blanket
• 1/4″ Solid Steel Frame
• 4-Way 22-Bolt Locking System
• 4″ x 1½” Fully Rotating Locking Bolts
• Sargent & Greenleaf, U.L. Listed Group 2, Spy-Proof Lock with Locking Dial (Digital Lock Available)
• Adjustable Ball Bearing Hinges
• 3/4″ 60+ Rockwell Hard plate
• Internal Release
• Carpeted Door Panel
• Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
• Standard Texture Colors: Black, Brown, Gray, Dark Green and Burgundy – Gloss and Custom Finishes Available

Atlas Series Vault Door Specifications

• Door: 2″ Step System Door with 1/2″ Solid Steel Front Plate
• Frame Thickness: 1/4″ Solid Steel
• Fire Rating: 2 Hour – 2300° Ceramic Fire Blanket and multi-layer fire board
• Locking Bolt System – 4-Way – Fully Active
• Number of Locking Bolts: 22 – 4″ x 1½” Locking Bolts Fully Active Bolts, 18 – Fully Rotating
• Lock Type: U.L. Listed Group 2, Sargent & Greenleaf, Spy-Proof Lock
• Hard Plate: 3/4″ Solid 60+ Rockwell Hard Plate
• Internal Release: Yes
• Re-Locker: Titan Multi Re-locker (Includes 1ea. Brass Arm & 4ea. Titan)
• Standard Finish: Black, Wimbledon White, Gray, Brown or Dark Green Matte Finish
• Gloss and Custom Finish Available: Yes
• Hardware: Choice of Silver, Gold or Black Matching Hardware
• Warranty: Limited Lifetime

Specifications:

Rough Opening:
Add 1/4″ to the Height of the Door and 1/2″ to the Width of the Door

Specification/Installation Instructions Below, click to download

80″ x 30″ Outswing Door

80″ x 30″ Inswing Door

80″ x 35″ Outswing Door

80″ x 35″ Inswing Door

80″ x 40″ Outswing Door

80″ x 40″ Inswing Door

80″ x 45″ Outswing Door

80″ x 45″ Inswing Door

Warranty:

Fire – If your Vault Pro, Inc. safe or vault door is damaged during a fire, Vault Pro, Inc. will replace your safe for Free.

Break-In – If your Vault Pro, Inc. safe of vault door is attacked and force entered they will either repair or replace it for free.

Manufacturer Defect – In most cases, Vault Pro, Inc. will repair your safe or vault door on site due to manufacturer defect.

Extended Life Time Warranties

• Lifetime Lock and Attempted Break-In are not standard warranties. Locks are warranted by the manufacturer for a period of one year from date of purchase. Extended life time warranties on locks and Attempted Break-in Warranties are available at time of purchase or within 30 days of purchase.
• Vault Pro, Inc. does not cover the contents of safes or vaults, or the installation/removal of safes or vault doors for any reason under any circumstances.
• A police/fire report will need to be properly filed and provided to Vault Pro along with proof of purchase and owners identification in order to activate any fire or break-in warranty. In some cases Vault Pro will require your safe or vault door to be returned for proper inspection and repair/replacement. Vault Pro will guarantee return shipping on any product properly sent for repair or replacement.
