Description

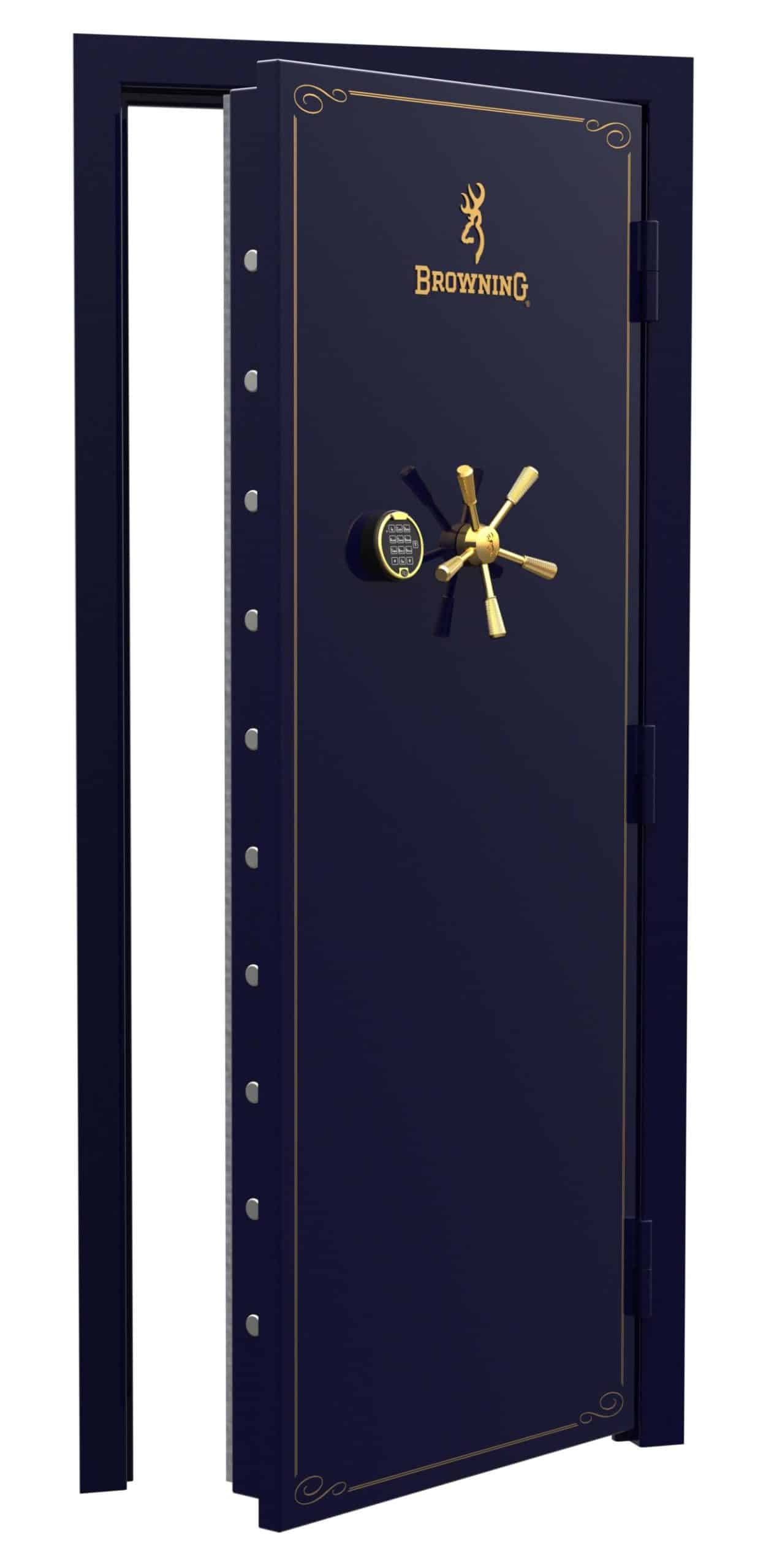

Browning’s Universal Vault Door is a Duo-Formed door designed to fit a variety of wall types and installation requirements. The minimum rough door opening for the Vault Door is 83″ x 36″. For new construction, the external L-frame with 1/2 diameter steel J-bolt anchors (included) can be poured in place.  Or you can install the vault door in an existing door frame by using expansion anchors or lag bolts (not included).

• Door frame “L-flange” will fit any wall with a minimum thickness of 5 1/2″
• 1 5/16″ thick Duo-Formed® door
• 22 chrome locking bolts, 1.25″ diameter
• OmniBarrier® Lock Protection System
• Uni-Force™ Locking System
• 1.7//8″ of fire resistant insulation in the door face
• Knurled 5-spoke Buckmark handle
• External ball-bearing hinges
• Palusol expanding fire seal
• Also available with a black primer finish, allowing safe owner to paint to match any decor
• Internal lock release to open the door from within the vault

Standard Specifications:

• The minimum rough door opening for the Standard Vault Door is 83.00″ H x 36.00″ W.
• Clear Opening Width is 30 5/8″
• External L-frame with 1/2″ diameter steel J-bolt anchors (included) can be poured in place in new construction or installed in an existing door frame by using expansion anchors or lag bolts (not included).
• Door frame L-flange will fit any wall with a minimum thickness of 5-1/2″.
• Available in Out-Swing model only.
• Dimensions: 84.00″ H x 38.13″ W (Includes Door Frame)
• Weight: 645 lbs.
• 7-gauge frame.
• Locking bolts: 22.
